2005 Toyota RAV4 OEM Shop Service Repair Electrical Wiring Diagram Manual
Original OEM Toyota factory dealer shop maintenance service repair wiring diagram manual for 2005 Toyota RAV4 (ACA23 and ACA28). Not a reproduction.
Includes detailed wiring diagrams and troubleshooting information for all models of the 2005 Toyota RAV4.

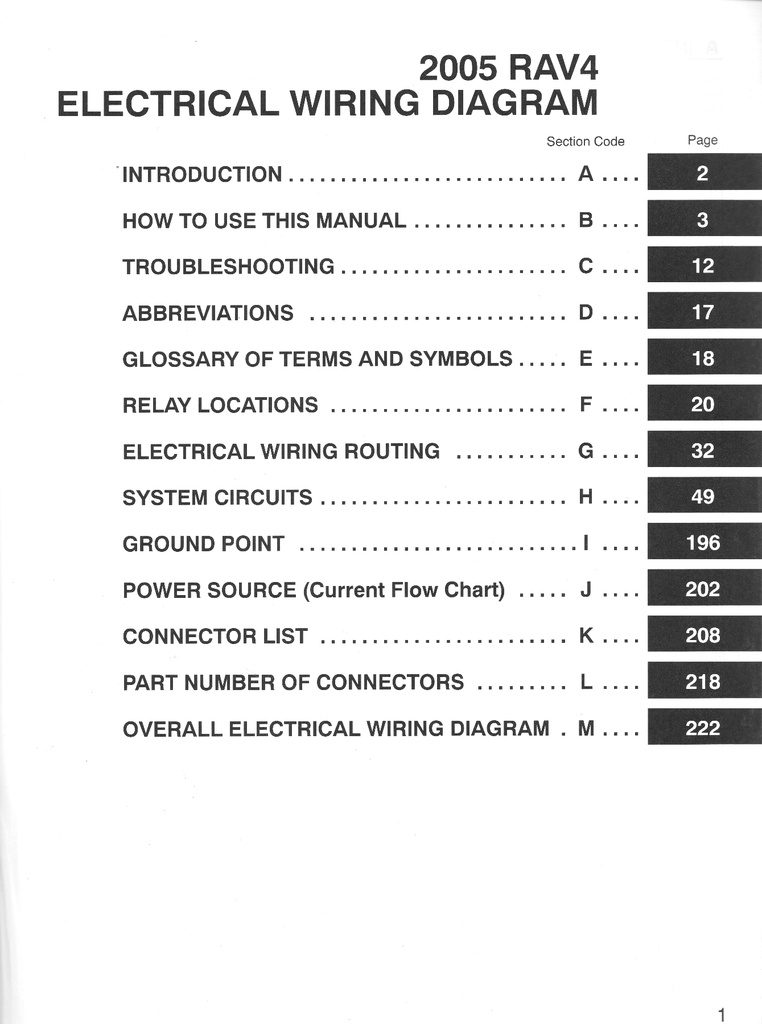

Contents of this manual include:
Introduction
How to Use This Manual
Troubleshooting
Abbreviations
Glossary of Terms and Symbols
Relay Locations
Electrical Wiring Routing
System Circuits
Ground Point
Power Source (Current Flow Chart)
Connector List
Part Number of Connectors
Overall Electrical Wiring Diagram
Toyota Pub. No. EWD594U
We have multiple copies of this manual. Cover photo is representative of typical condition. You will receive a copy with similar condition.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use in a dealer service department and possible markings or mechanic’s notes. We sell only complete usable manuals with no missing sections. Don’t settle for an incomplete copy or hard-to-read reproduction.
