2003 Ford F-150 Pickup Factory Electrical Wiring Diagrams Manual
This is an original Ford factory Electrical Wiring Diagrams Manual for the 2003 Ford F-150 Pickup (F150). It’s the official manual, published by Ford, for mechanics and auto technicians to use in dealer service departments. It’s not a reproduction or pirate copy. It’s the most complete information available for this make and model. The best version may cost a little more, but you deserve the best.

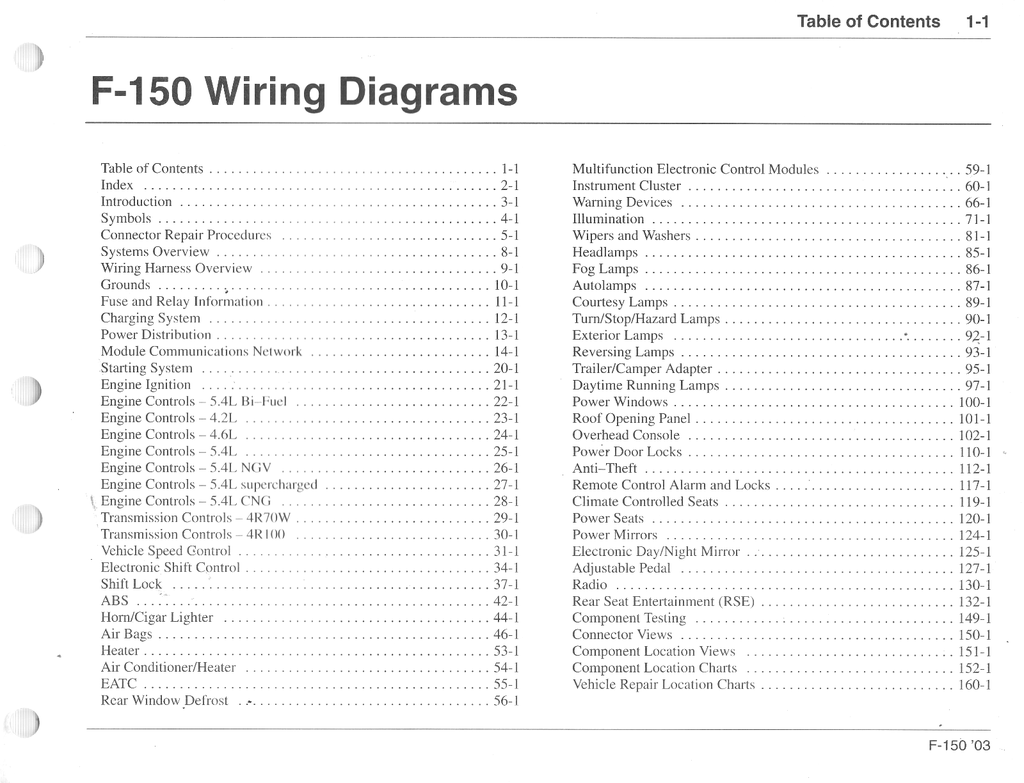

Intended for use with the companion Factory Workshop Manual for these models. This book covers all options, trims, and body styles for the 2003 Ford F-150 Pickup. Includes cross-referenced electrical schematic and full-view illustration wiring diagrams:
Index
Introduction
Symbols
Connector Repair Procedures
Systems Overview
Wiring Harness Overview
Grounds
Fuse and Relay Information
Charging System
Power Distribution
Module Communications Network
Circuit Diagrams
Component Testing
Connector Views
Component Location Views
Component Location Charts
Vehicle Repair Location Charts
| Book Title: 2003 Ford F-150 Pickup Electrical Wiring Diagrams Manual |
| Author: Technical Publications Department, Ford Customer Service Division |
| Publisher: Ford Motor Company |
| Model: F-150 |
| Model Years Covered: 2003 |
| MPN: FCS-12263-03 |
| Condition: Used - Acceptable |
| Binding: Paperback |
| Language: English |
| Year Printed/Published: 2002 |
| Edition: Original Factory OEM Print Edition |
| Make: Ford |
| Number of Pages: 560 |
We have multiple copies of this manual. The picture is representative of condition. You will receive a manual in similar condition. Each manual has its own unique patina from use in a Dealer Service Department.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use and possible markings or mechanic’s notes from use in a dealership service department. Our OEM factory printed manuals are complete and fully usable with no missing sections. Don’t settle for a difficult-to-use PDF, an incomplete copy, or a hard-to-read reproduction.
