1990 Chevrolet Light Duty Truck Series 10-35 Unit Repair Shop Manual for C/K & S-10 Pickup, Suburban, Blazer, G Van, M Van, P Van/Truck
Original GM OEM Chevrolet factory shop unit repair manual for 1990 Chevrolet Light Duty Trucks Series 10, 20, and 30, including R/V and C/K Pickups, Suburban, Blazeer, and Chassis; S-10, G Van; M Van (Astro); and P Van and Motorhome and Forward Control Chassis. Also applies to 1990 GMC Light Duty Trucks. Not a reproduction.
This factory service manual has the most complete information available about the processes for disassembly and assembly of the below components for 1990 Chevrolet light duty trucks (10/1500, 20/2500, 30/3500 series; C, K, P, R, V, S, T trucks; M-van, G-van models).

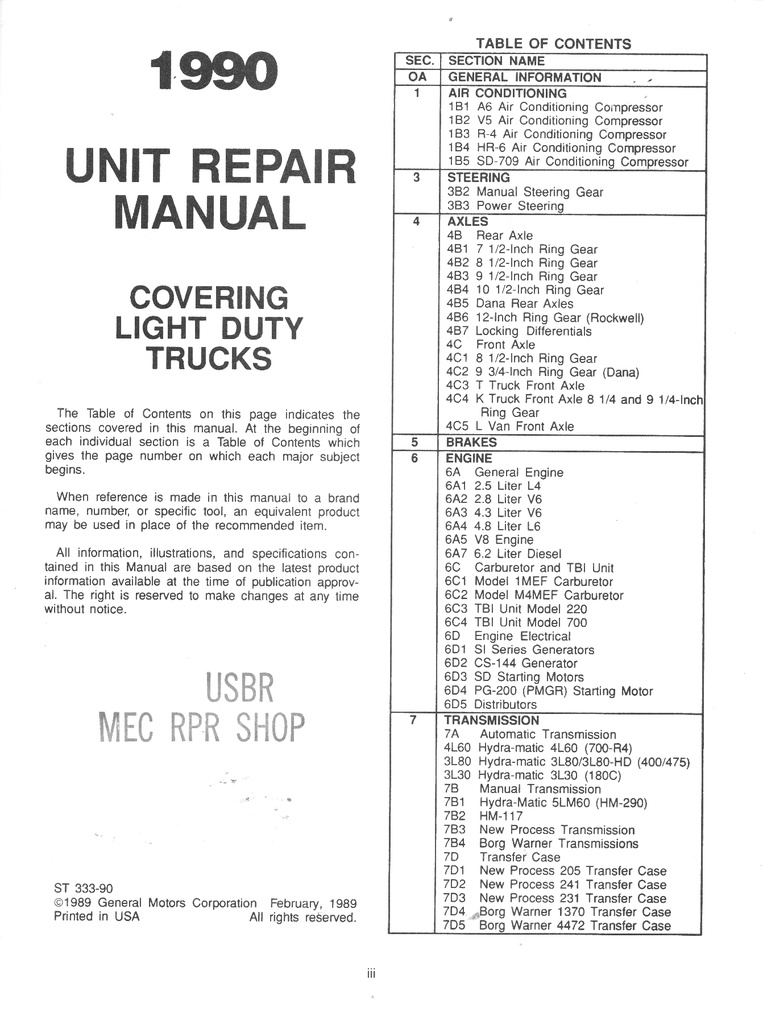

Contents Include:
General Information
Air Conditioning
A6 Air Conditioning Compressor
V5 Air Conditioning Compressor
R-4 Air Conditioning Compressor
SD-709 Air Conditioning Compressor
HR-6 Air Conditioning Compressor
Steering
Manual Steering Gear
Power Steering
Axles
Rear Axle
7 1/2 and 7 5/8 Inch Ring Gear
8 1/2 Inch Ring Gear
9 1/2 Inch Ring Gear
10 1/2 Inch Ring Gear
Dana Rear Axles
12 Inch Ring Gear (Rockwell)
Locking Differentials
Front Axle
8 1/2 Inch Ring Gear
9 3/4 Inch Ring Gear (Dana)
T Truck Front Axle
K Truck Front Axle
L Van Front Axle
Brakes
Engine
General Engine Mechanical
2.5 Liter (L4)
2.8 Liter (V6)
4.3 Liter (V6)
4.8 Liter (L6)
V8 Engine
6.2 Liter Diesel
Carburetor and TBI Unit
Model 1MEF Carburetor
Model M4MEF Carburetor
TBI Unit Model 220
TBI Unit Model 700
Engine Electrical
SI Series Generators
CS-144 Generator
SD Starting Motors
PG-200 (PMGR) Starting Motor
Distributors
Transmission
Automatic Transmission
Hydra-Matic 4L60 (700-R4)
Hydra-Matic 3L80/3L80-HD (400/475)
Hydra-Matic 3L30 (180C)
Manual Transmission
Hydra-Matic 5LM60 (HM-290)
HM-117
New Process Transmission
Borg Warner Transmissions
Transfer Case
New Process 205 Transfer Case
New Process 241 Transfer Case
New Process 341 Transfer Case
Borg Warner 1370 Transfer Case
Borg Warner 4472 Transfer Case
| Book Title: 1990 Chevrolet Light Duty Truck Unit Repair Manual |
| Author: Chevrolet Motor Division |
| Publisher: General Motors Corporation |
| Edition: Original Factory OEM Edition |
| Binding: Paperback |
| Language: English |
| MPN: ST-333-90 |
| Condition: Used - Acceptable |
| Make: Chevrolet Truck, GMC Truck |
| Model: C/K Truck, Pickup Truck, Blazer, Suburban, Chevy Van, Sport Van |
We have multiple copies of this manual. Cover photo is representative of typical condition. Your copy will have similar condition with its own unique genuine shop patina.
Our “Acceptable” or “Used” grade books may have some wear and possible markings or mechanic’s notes from use in a dealership service department.
Our OEM factory printed manuals are complete and fully usable with no missing sections. Don’t settle for a difficult-to-use PDF, an incomplete copy, or a hard-to-read reproduction.
